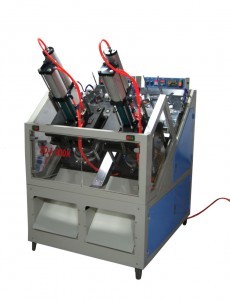

Automatic Wrinkle Paper Plate Making Machine

Automatic Wrinkle Paper Plate Making Machine
Automatic Wrinkle Paper Plate Making Machine
Product Code : 41
Product Description

ZDJ paper plate forming machine is is developed and designed as the requirement of market. It is pneumatic type automatic paper dish forming machine with owned unique property right, which has functions as automatic paper feeding, forming, dish ejecting, temperature constant controlling, automatic counting, fast working speed, safe operation and easy maintenance, etc. This machine have two working station, two molds installed in the machine, you can produce two sizes paper plates in the same time or let the two molds the same to get double speed.Air compressor is connected with this machine to offer the air pressure..

Main Technical   Parameter

GENERAL POWER—-2 KW

PAPER REQUEST—–100-1000G/M

POWER SUPPLY——220V50HZ/380V50HZ OR CUSTOMIZE

SPEED——————-40 TO 60 PCS PER MINUTE

WEIGHT—————-500 KG

DIMENSION———-1420X1200X1900MM

AIR SOURCE———-0.6MPA

Price-720000/-Rs

MAIN TECHNICAL PARAMETER

Model

ZDJ

Paper Dish Size

5-12 inch adjustable mould

The material of paper

Ordinary paper or Single side PE coated paper

Rated Productivity

General model:45-60 pcs/min(one working station)
Fast model:65-100 pcs/min(one working station)

Total Power

2kw 220/380V 50HZ

Weight

500kg

Overall dimensions (L*W*H)

1420x1200x1900mm
